Product Description

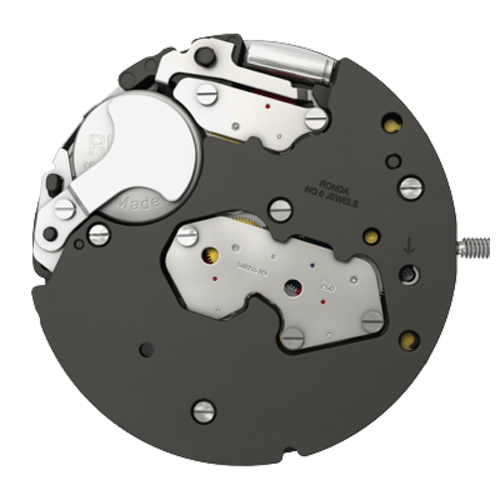

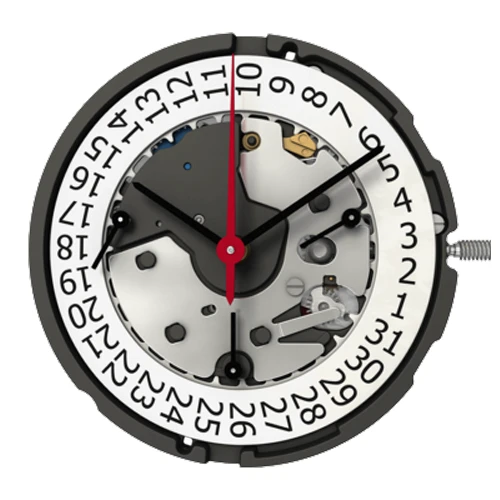

Harley Ronda Z60 Quartz Chronograph Watch Movement
Manufacturer Ronda
Caliber Number Z60
Movement Type Quartz, battery-powered
Lignes 13.25”’ (30.60mm)
Diameter 30.6mm
Casing Diameter
30mm
Height
4.6mm
Jewel Count 0 jewels
Battery Cell # 395 (1.5 V)
Battery Life
50 months
Hand Sizes 1.50mm / .90mm / .25mm / .20mm
Stem
SP84 (needs confirmed)
Functions Central hours; central minutes; central 1/1 chronograph seconds; small seconds at 2:00; 30 minute counter at 6:00; day of the week at 10:00; date at 4:00
Swiss Parts
Resetting the Chronograph to Zero after changing the battery
Pull out the crown to time setting mode (position 3)
Push and hold the top and bottom buttons at the same time for about 2 seconds. The central seconds hand will rotate around the dial, this means resetting mode is activated.
Use the top pusher to adjust the central second hand. Push the button to advance the hand by one second, or push and hold to advance the hand faster.
Use the bottom button the adjust the 30 minute counter.
Press the crown back in.
